Electromagnetic-wave while-drilling probe measuring inclination, azimuth and tool-face angle with multi-stage amplification and professional noise filtering.
The Mining While-Drilling Probe (Electromagnetic Wave) continuously and dynamically measures key parameters such as borehole inclination, azimuth and tool-face angle during drilling. High-precision sensors capture weak physical signals, which undergo multi-stage amplification and professional filtering to extract the effective signal reflecting the true physical state.
Keeping a borehole on its designed trajectory requires continuous measurement of its attitude while drilling — inclination, azimuth and tool-face angle — because waiting until the hole is finished to survey it means corrections are expensive or impossible. The Mining While-Drilling Probe (Electromagnetic Wave) performs this measurement during drilling: the probe continuously and dynamically measures these key parameters as the drill string advances.

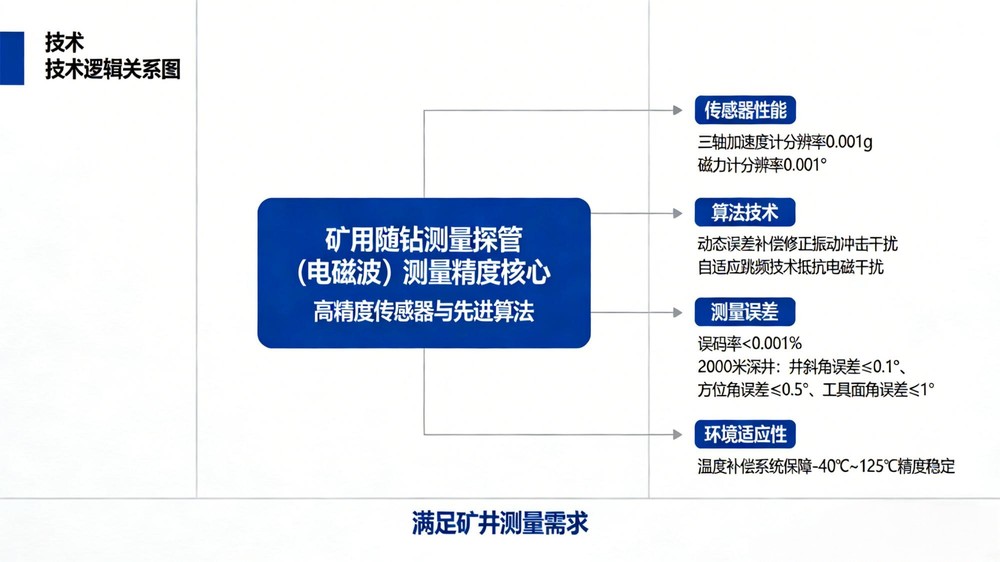

High-precision sensor components inside the probe capture the weak physical signals generated during drilling operations. These raw signals are too small and too noisy to use directly, so the probe applies multi-stage amplification to enhance signal strength and ensure processing accuracy. Professional filtering then removes environmental noise and interference — vibration, electromagnetic fields and other drilling dynamics — leaving the effective signals that reflect the true physical state of the borehole.

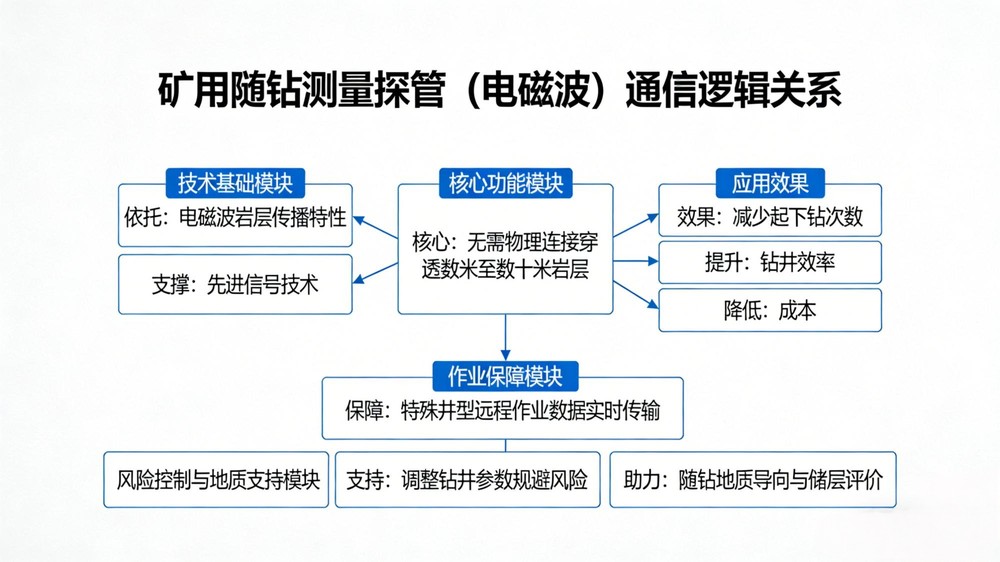

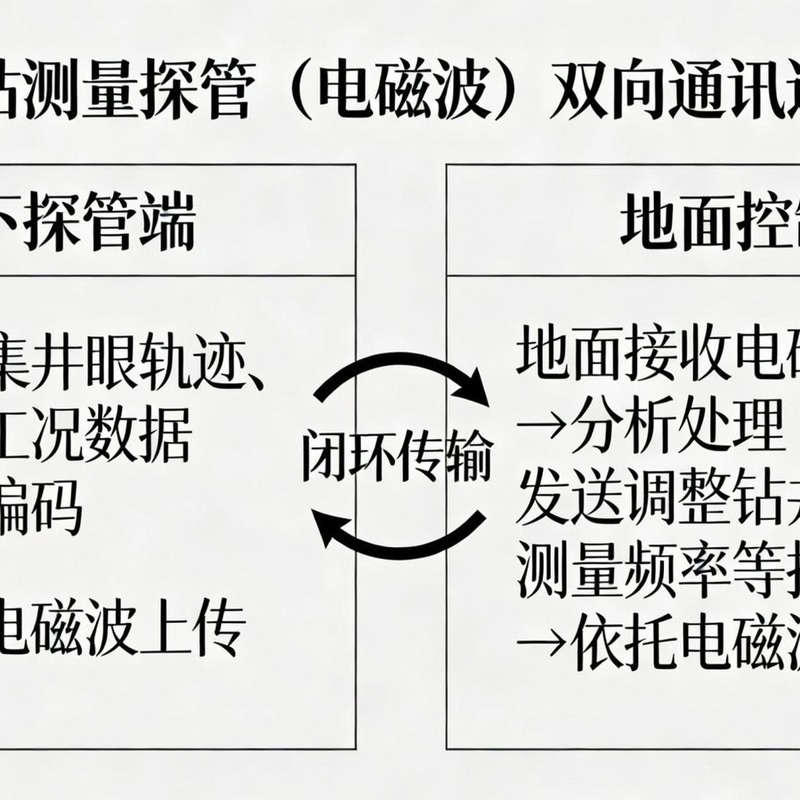

The electromagnetic-wave transmission version communicates the measured data without cable, simplifying drill-string assembly and avoiding the failures associated with cable drill rods. The result is a rugged measurement probe that gives drill operators continuous attitude feedback, enabling timely course corrections and accurate as-drilled borehole records in coal mines and other drilling applications.
| Parameter | Value |
|---|---|
| Measured Parameters | Borehole inclination, azimuth, tool-face angle |
| Signal Processing | Multi-stage amplification, professional filtering |
| Transmission | Electromagnetic wave |
| Measurement Mode | Continuous and dynamic during drilling |
| Application | Directional boreholes in coal mines |
Directional drilling trajectory control, gas drainage borehole measurement, underground drilling guidance, and while-drilling monitoring.
