Collar-powered while-drilling probe with high-precision sensor array and weak-signal preprocessing for real-time borehole monitoring and steering.
The Mining While-Drilling Probe (Collar-Powered) is a core tool for real-time monitoring and steering in drilling engineering, accurately measuring key physical parameters during borehole construction. A high-precision sensor array continuously acquires original physical signals, and the probe first preprocesses these weak, noisy signals before measurement.
Directional drilling is only as good as the feedback it receives. The Mining While-Drilling Probe (Collar-Powered) serves as a core tool for real-time monitoring and steering in drilling engineering, accurately measuring the key physical parameters of the borehole during construction. These parameters provide the basic data support required to keep the borehole trajectory on the designed path.

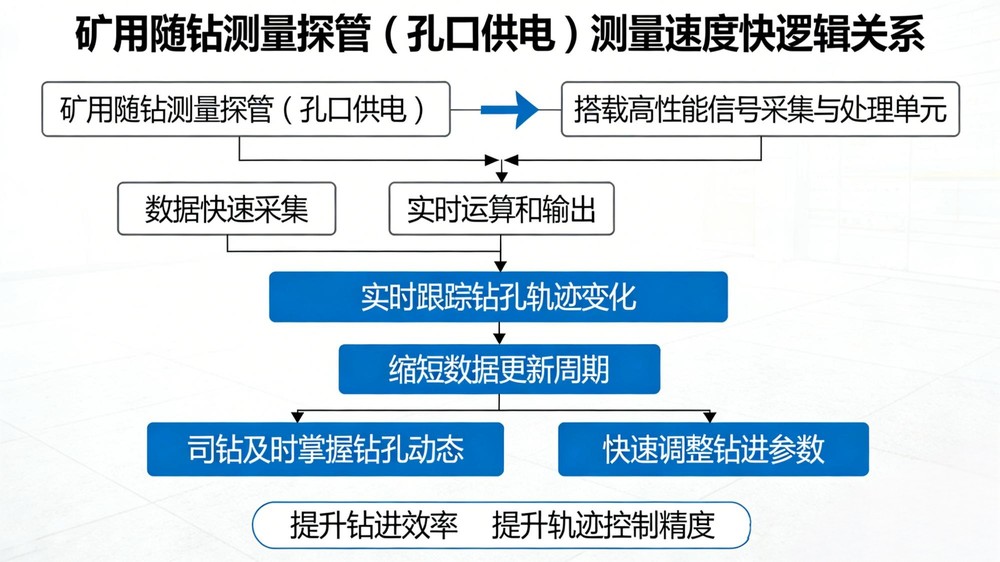

Inside the probe, a high-precision sensor array continuously acquires original physical signals from the drilling environment in real time. Because these signals are weak and may contain noise, the probe first performs preprocessing on the small signals — conditioning and stabilizing them before conversion and computation. This preprocessing stage is critical: it ensures the measured values are trustworthy enough to steer from, even under the vibration, temperature and electrical interference typical of drilling.

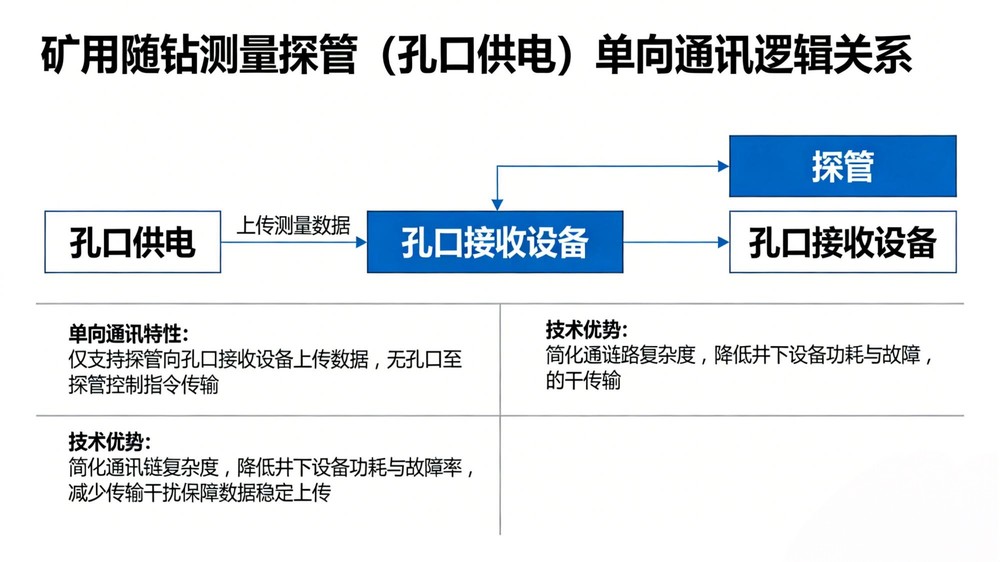

The collar-powered design draws power through the drill string, removing the battery constraints of self-contained probes and supporting longer drilling campaigns without downhole power management. By combining a high-precision sensor array with careful signal preprocessing and collar power supply, the probe gives drilling operators reliable real-time attitude data for borehole steering and accurate as-drilled records.
| Parameter | Value |
|---|---|
| Power Supply | Collar-powered |
| Sensor Array | High-precision, continuous acquisition |
| Signal Processing | Preprocessing of weak sensor signals |
| Function | Real-time monitoring and steering support |
| Application | Borehole construction in drilling engineering |
Directional drilling steering, gas drainage hole measurement, underground drilling engineering, and borehole trajectory control.
