Product Overview
The Intrinsically Safe Mining Locomotive Speed Image Collector is a mining intrinsically safe device that integrates advanced image acquisition and local image processing. It processes images locally while capturing them, outputting results on-site without external computing resources, with typical applications in underground vehicle traffic management such as real-time overspeed snapshot capture.
Product Description
Underground locomotive traffic moves through roadways where overspeeding is dangerous for both the driver and pedestrians, yet conventional enforcement — surface cameras with central processing — is hard to deploy in gassy tunnels with limited network. The Intrinsically Safe Mining Locomotive Speed Image Collector solves this at the edge: it integrates advanced image acquisition and local image processing so that results are produced where the capture happens.

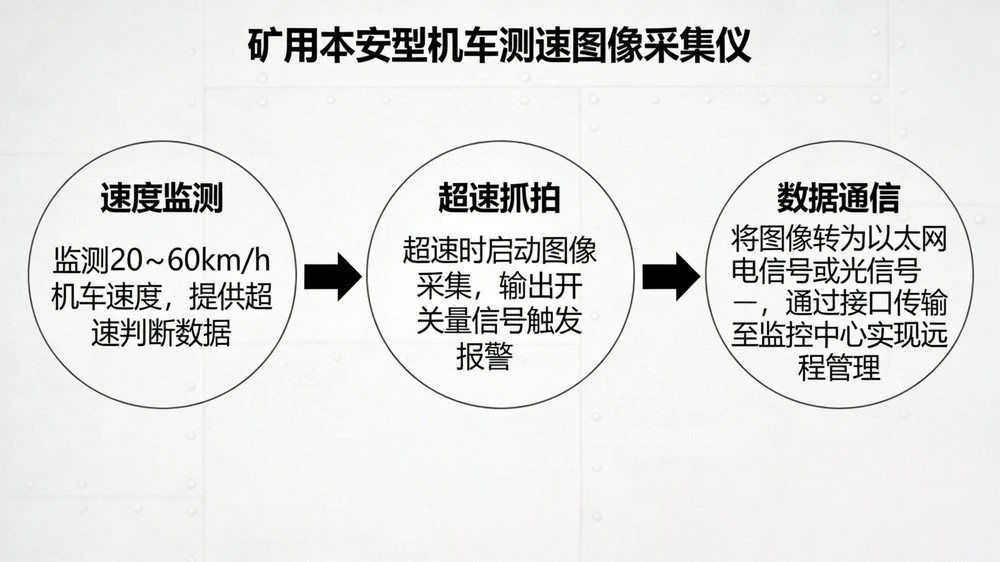

The device processes images locally while capturing them, outputting results on-site without relying on external computing resources. A typical application is real-time overspeed snapshot capture: when the integrated speed sensing determines that a locomotive is exceeding the permitted speed, the collector captures an image of the vehicle on the spot, producing evidence immediately. It can also perform section-speed enforcement by analyzing vehicle travel time and distance over designated road segments, identifying average-speed violations across a defined stretch of roadway.
The device is intrinsically safe, so it can be installed along underground haulage roads in hazardous areas. Because processing is local, it works where network connectivity is poor or absent — the collector simply records violations and status locally and reports them when communication is available.
Key Features
- Mining intrinsically safe device for complex environments
- Integrated image acquisition and local image processing
- On-site result output without external computing resources
- Real-time overspeed snapshot capture
- Section-speed enforcement by travel time and distance analysis
- Suitable for installation in hazardous underground areas
Technical Specifications
| Parameter | Value |
|---|
| Safety Design | Mining intrinsically safe |
| Core Functions | Image acquisition, local image processing |
| Traffic Applications | Overspeed snapshot, section-speed enforcement |
| Processing | On-site, no external computing dependency |
| Deployment | Underground roadways and haulage routes |
Applications
Underground locomotive speed enforcement, vehicle traffic management, haulage safety monitoring, and mine transport behavior supervision.
![]()
![]()
![]()
