5G integrated communication system for mines with multi-network fusion (5G/4G/WiFi 6). Latency ≤10 ms, peak ≥10 Gbps, 1 million devices/km², on-premise data sovereignty.

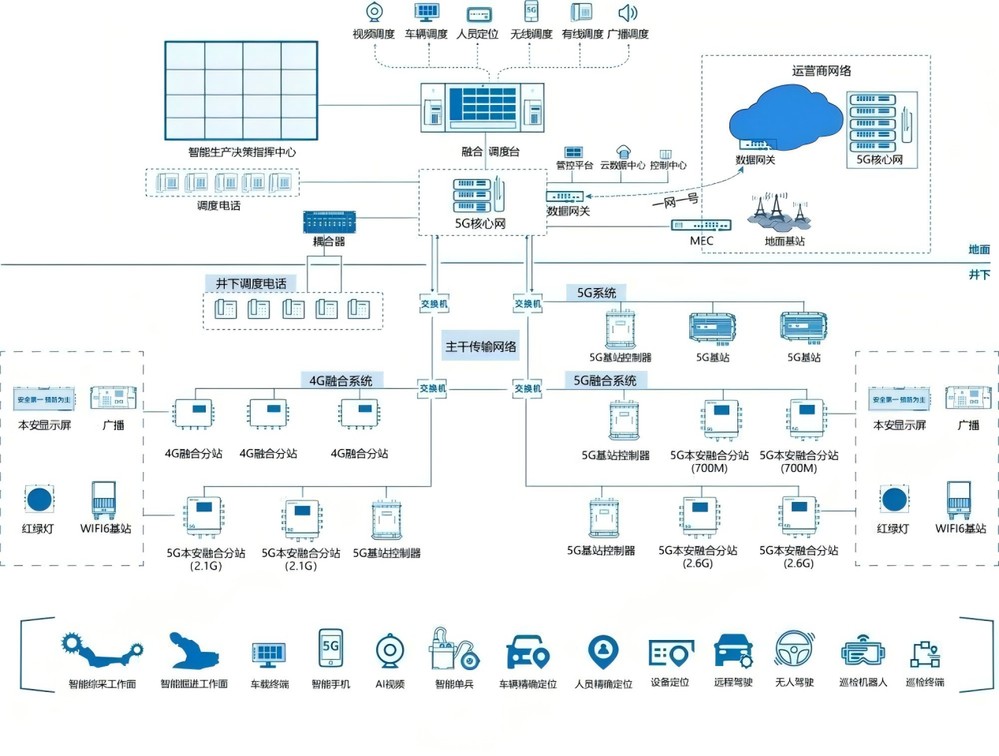

The Mining 5G Integrated Communication System is built on 5G technology at its core, employing multi-network fusion to integrate 5G, 4G, WiFi 6, and precision positioning networks into a unified solution for mine intelligentization. Providing full 5G coverage, 5G terminal and application support, and integrated data fusion transmission, the system meets the security requirement of keeping all data on-premise while delivering wide connectivity, high reliability, low latency, and large bandwidth for underground applications.

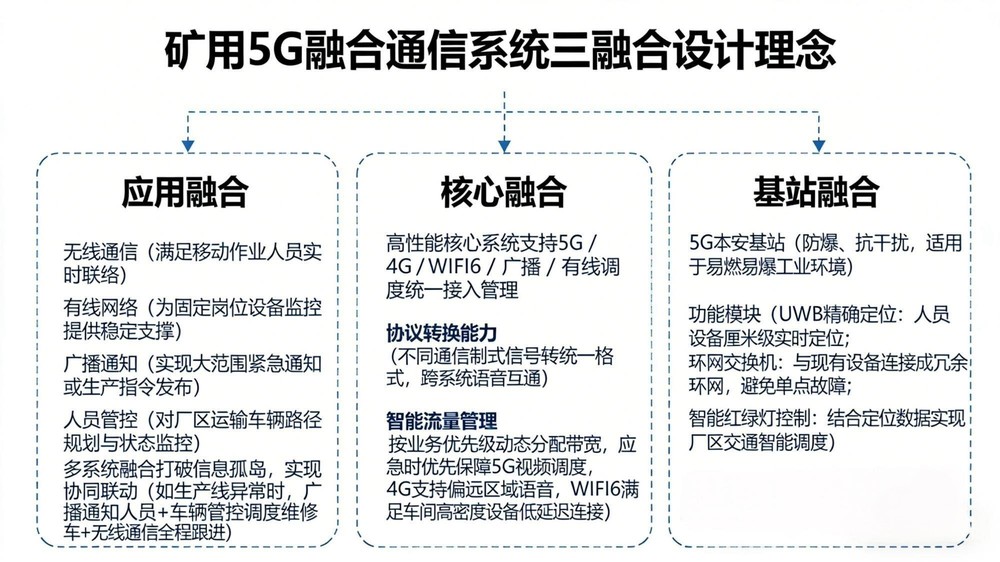

The intelligent transformation of mining operations demands a communication infrastructure that can simultaneously support massive sensor connectivity, ultra-low-latency remote control, high-bandwidth video streaming, and autonomous vehicle communication — all while keeping sensitive operational data within the mine's boundaries. The Mining 5G Integrated Communication System is engineered to meet these demands through its innovative "three-in-one" fusion design philosophy: application fusion, core fusion, and base station fusion, which dramatically reduces construction costs compared to deploying separate networks for each technology.
The system's 5G intrinsically safe fusion base station is a multi-function powerhouse, supporting 5G, precision positioning, ring network switching, and traffic light control modules in a single unit — achieving "one station, multiple uses" deployment efficiency. The fusion command capability leverages GIS mapping to create a closed-loop linkage of "location-resource-command," enabling coordinated emergency response across all communication subsystems. The core network is self-controllable, meaning the mine retains full sovereignty over its data with no dependency on operator networks.

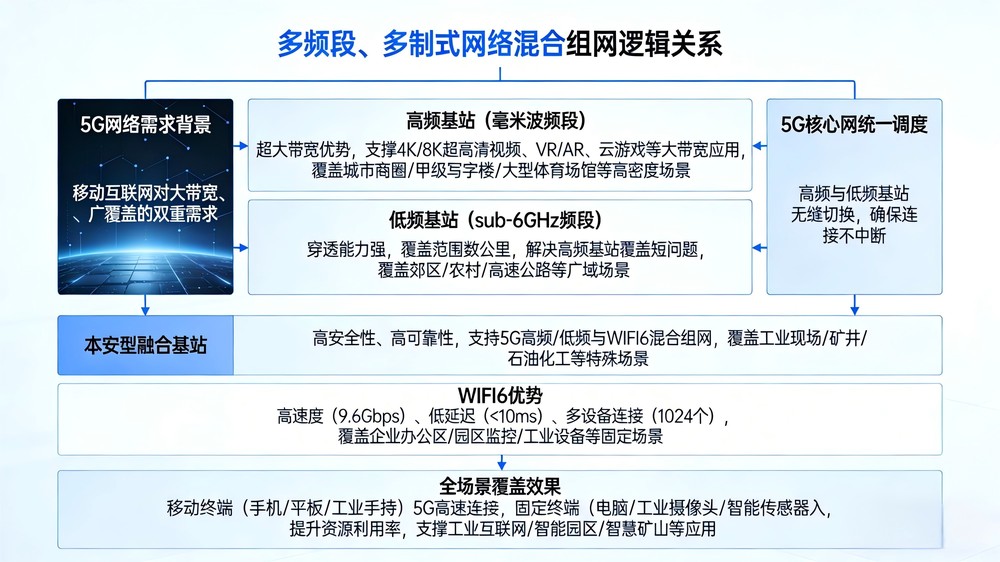

Performance parameters are impressive: end-to-end latency of ≤10 ms, connection density of up to 1 million devices per square kilometer, and peak rates exceeding 10 Gbps. The integrated WiFi 6 component delivers up to 9.6 Gbps with sub-10 ms latency and support for up to 1,024 connected devices. The system supports multi-band, multi-standard hybrid networking with 5G high-low frequency mixing and WiFi 6 fusion, and is compatible with a wide range of access terminals including 5G/4G/WiFi 6 fusion stations. Interconnection with operator networks is supported for scenarios where external connectivity is required, and supported link types include industrial Ethernet ring networks, SPN, and F5G.
| Parameter | Value |
|---|---|
| End-to-End Latency | ≤10 ms |
| Connection Density | 1,000,000 devices/km² |
| Peak Rate | ≥10 Gbps |
| WiFi 6 Max Rate | 9.6 Gbps |
| WiFi 6 Latency | <10 ms |
| WiFi 6 Max Devices | 1,024 |
| Supported Link Types | Industrial Ethernet ring, SPN, F5G |
Coal mine intelligentization, underground 5G communication coverage, remote equipment control, unmanned driving, intelligent inspection, and emergency dispatch command.
