Two-Wire Ethernet Switch | 10BASE-T1L Industrial Network

Product Overview

The Two-Wire Ethernet Switch is a networking device optimized for industrial environments, following the 10BASE-T1L Ethernet standard. It supports symmetric transmission at up to 10 Mbps over a single twisted pair with distances up to 1,000 meters, providing reliable network aggregation for acoustic-vibration-temperature Ethernet monitoring systems.

Product Description

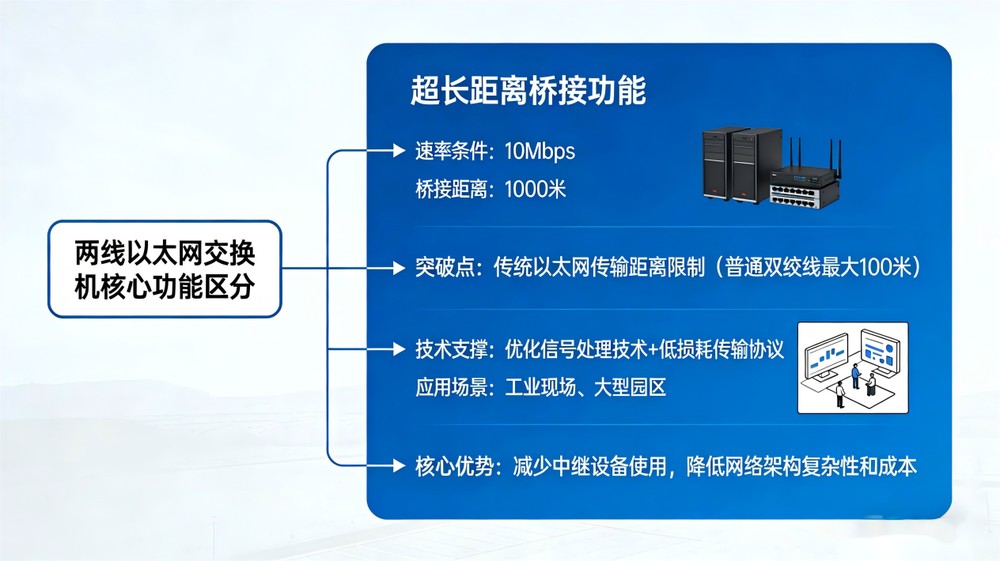

Conventional industrial Ethernet requires multi-pair cabling and careful distance planning, which complicates deployment in existing facilities where cable ducts are full and distances are long. The Two-Wire Ethernet Switch addresses this by following the 10BASE-T1L standard — 10 Mbps Ethernet over a single twisted-pair cable with a reach of up to 1,000 meters. Long-distance connectivity without re-cabling makes the switch a practical foundation for retrofitting monitoring networks into operating plants.

Optimized for industrial environments and suitable for network deployment in safe areas, the switch is designed as the aggregation point for acoustic-vibration-temperature Ethernet monitoring systems. It supports cascading, allowing multiple switches to form an orderly, scalable topology. Each switch can connect up to eight Ethernet monitoring devices, so a deployment can grow from a single machine room to an entire plant floor simply by chaining additional switches and attaching sensors along the way.

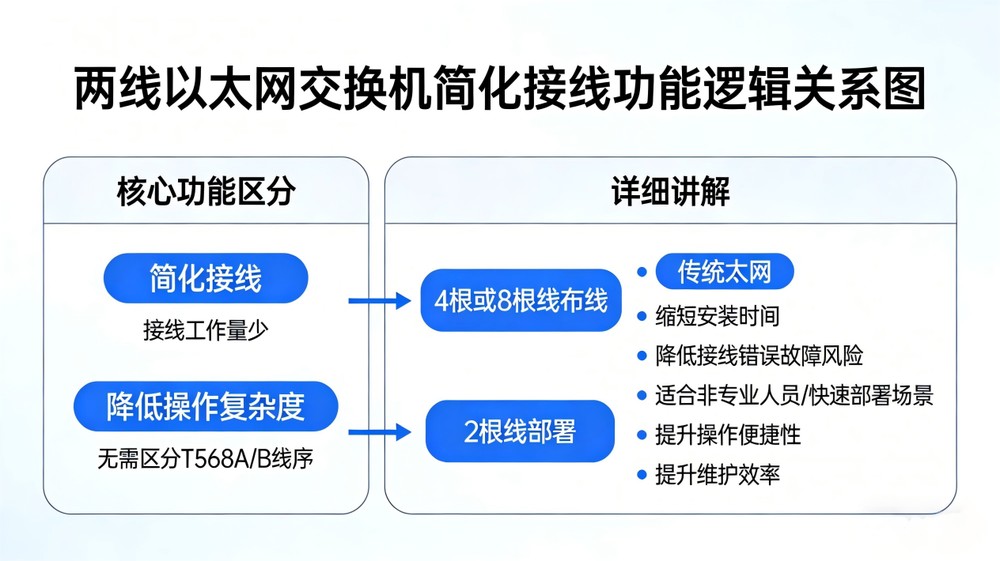

By standardizing on a two-wire physical layer, the switch simplifies cable specification, reduces installation cost and keeps the network structure easy to understand for maintenance personnel. It is a deliberately pragmatic building block for plants that need reliable condition-monitoring data at scale without a network overhaul.

Key Features

• 10BASE-T1L standard: 10 Mbps Ethernet over a single twisted pair
• Transmission distance up to 1,000 meters
• Optimized for industrial environments, suitable for safe-area network deployment
• Reliable aggregation for acoustic-vibration-temperature Ethernet monitoring systems
• Cascading support for scalable, orderly network topology
• Connects up to eight Ethernet monitoring devices per switch

Technical Specifications

Applications

Industrial condition-monitoring networks, acoustic-vibration-temperature sensor aggregation, plant-floor Ethernet expansion, and retrofitting monitoring systems into existing facilities.
