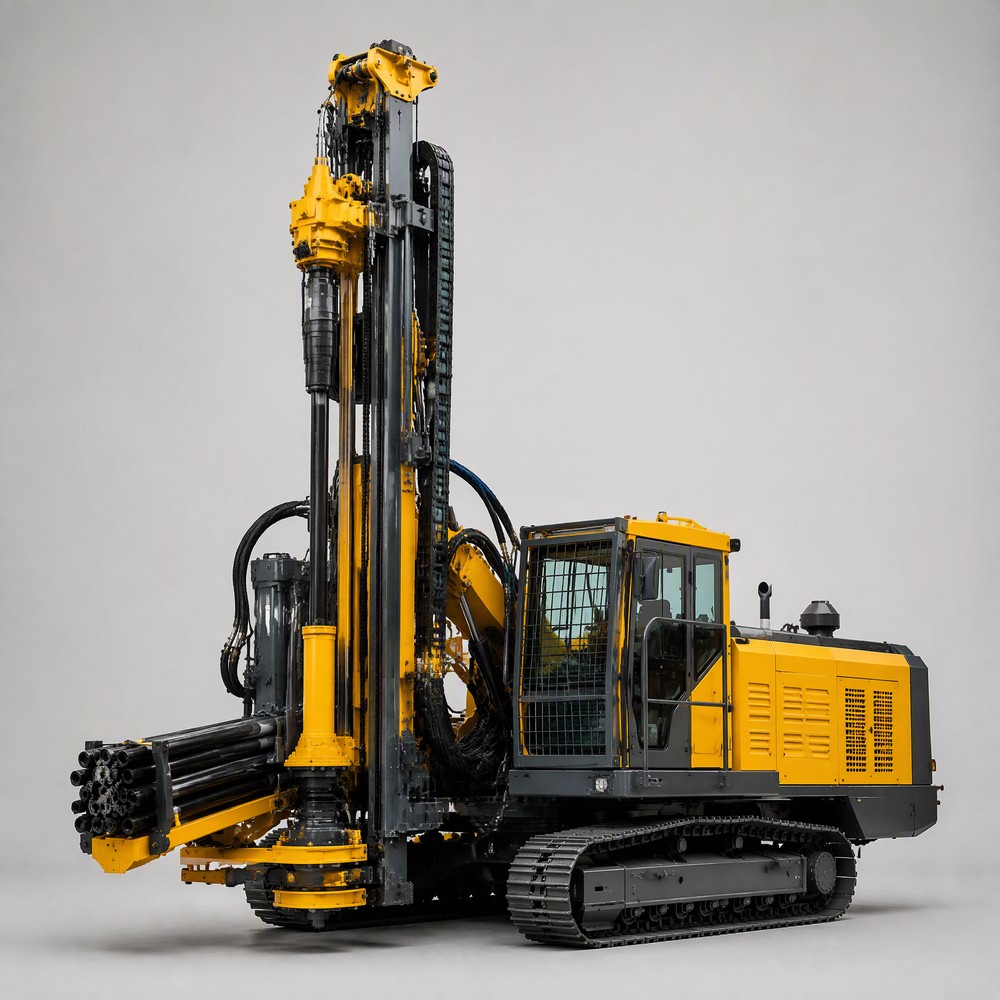

Intelligent Coal Mine Drill Rig PX-ZYWL4200Z

Product Overview

The PX-ZYWL4200Z is an intelligent coal mine drill rig in the PX series, built for underground drilling, water injection and pressure relief applications. It offers an output torque of 3600 / 4200 N·m and a controlled rotation speed of 70–75 r/min, providing consistent penetration for gas drainage, water injection and strata pressure relief boreholes. The machine is available in several torque and depth classes and is configured according to project requirements, so the final unit matches the needs of the client's drilling program, site utilities and operating conditions.

Product Description

The PX-ZYWL4200Z is engineered around intelligent operation principles, emphasizing controllable drilling parameters and dependable mechanical performance in underground coal mine conditions. Its rotation unit runs steadily at 70–75 r/min, while the approximately 980 mm feed parameter supports smooth rod cycles and accurate hole advancement. Routine monitoring and adjustment are simplified to help crews keep the drilling process stable through extended shifts.

As a multi-duty machine, the PX-ZYWL4200Z covers drilling, water injection and pressure relief, the core functions required for coal mine gas control and stress management programs. The rig is driven by an installed power of 55 kW and weighs approximately 10,000 kg, giving it the strength and stability for repeated underground work. Auxiliary equipment, electrical arrangements and other final details remain subject to configuration, with all values confirmed in the technical agreement and configuration sheet.

Key Features

• Multi-purpose support for drilling, water injection and pressure relief
• Intelligent control architecture adapted to coal mine operations
• Output torque of 3600 / 4200 N·m across a broad duty range
• Steady rotation speed of 70–75 r/min for controlled penetration
• Feed parameter of approximately 980 mm for efficient cycles
• Installed power of 55 kW supports continuous underground duty
• Machine weight of approximately 10,000 kg provides stability
• Multiple torque and depth classes available on request
• Fully configured by project requirements

Technical Specifications

Applications

The PX-ZYWL4200Z suits gas drainage drilling, water injection and pressure relief programs in coal mines, as well as underground engineering and tunneling borehole work where dependable multi-duty equipment is required. Project-based configuration allows the rig to be aligned with specific strata, hole plans and site utilities, supporting stable drilling output and safer, more predictable underground operations.
