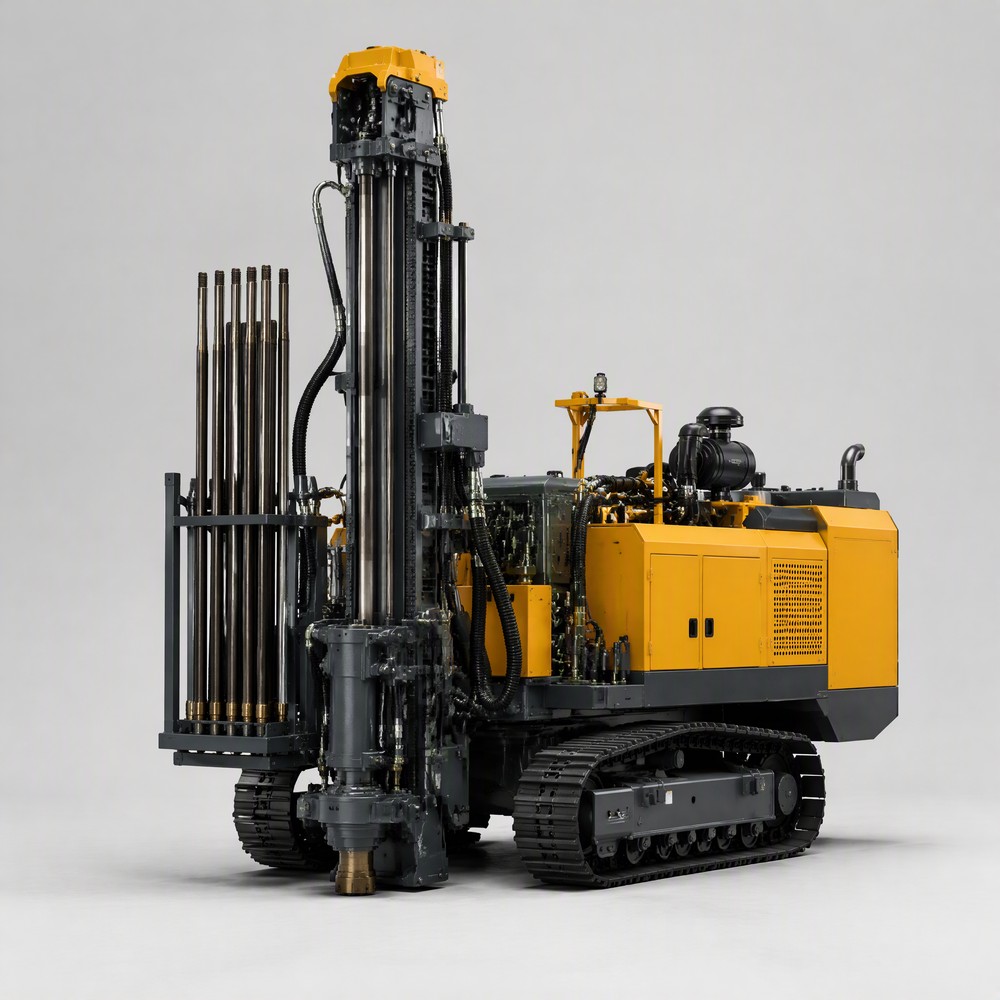

PX Series Intelligent Coal Mine Drill Rig PX-ZYWL3600Z

Product Overview

The PX-ZYWL3600Z is an intelligent coal mine drill rig developed for borehole construction in underground mining environments. It operates as part of the PX series of drilling and water injection equipment, covering drilling, water injection and pressure relief applications in a single machine. With an output torque of 3600 / 4200 N·m and a stable rotation speed range of 70–75 r/min, the rig provides controlled penetration for gas drainage and strata treatment boreholes. The machine is available in multiple torque and depth classes and is configured by project requirements, allowing operators to match the unit to their specific drilling plans.

Product Description

The PX-ZYWL3600Z combines intelligent control capabilities with a mechanical layout suited to underground coal mine operation. Its rotation system operates within a stable speed band of 70–75 r/min, and the feed parameter of approximately 980 mm supports efficient rod handling and hole progression. The design focuses on reliability and ease of supervision, helping crews maintain consistent drilling output in production environments.

Built as a multi-purpose unit, the PX-ZYWL3600Z handles drilling, water injection and pressure relief duties, which are central to gas control and ground stress management in coal mines. An installed power of 55 kW and a machine weight of approximately 10,000 kg provide the operating margin required for routine underground work. Final specifications, including auxiliary systems and controls, are confirmed through the technical agreement and configuration sheet, so the rig can be tailored to each project.

Key Features

• Supports drilling, water injection and pressure relief operations
• Intelligent control functions for underground coal mine drilling
• Output torque of 3600 / 4200 N·m for versatile hole programs
• Stable rotation speed range of 70–75 r/min
• Feed parameter of approximately 980 mm for efficient rod handling
• Installed power of 55 kW for routine underground duty
• Machine weight of approximately 10,000 kg for drilling stability
• Multiple torque and depth classes available
• Configured by project requirements

Technical Specifications

Applications

The PX-ZYWL3600Z is intended for gas drainage drilling, water injection and pressure relief tasks in underground coal mines, and it can also serve tunneling and underground engineering borehole programs. Its intelligent controls and project-based configuration help mine operators and contractors plan drilling work around actual strata and production schedules, improving hole quality and operational safety while reducing downtime.
