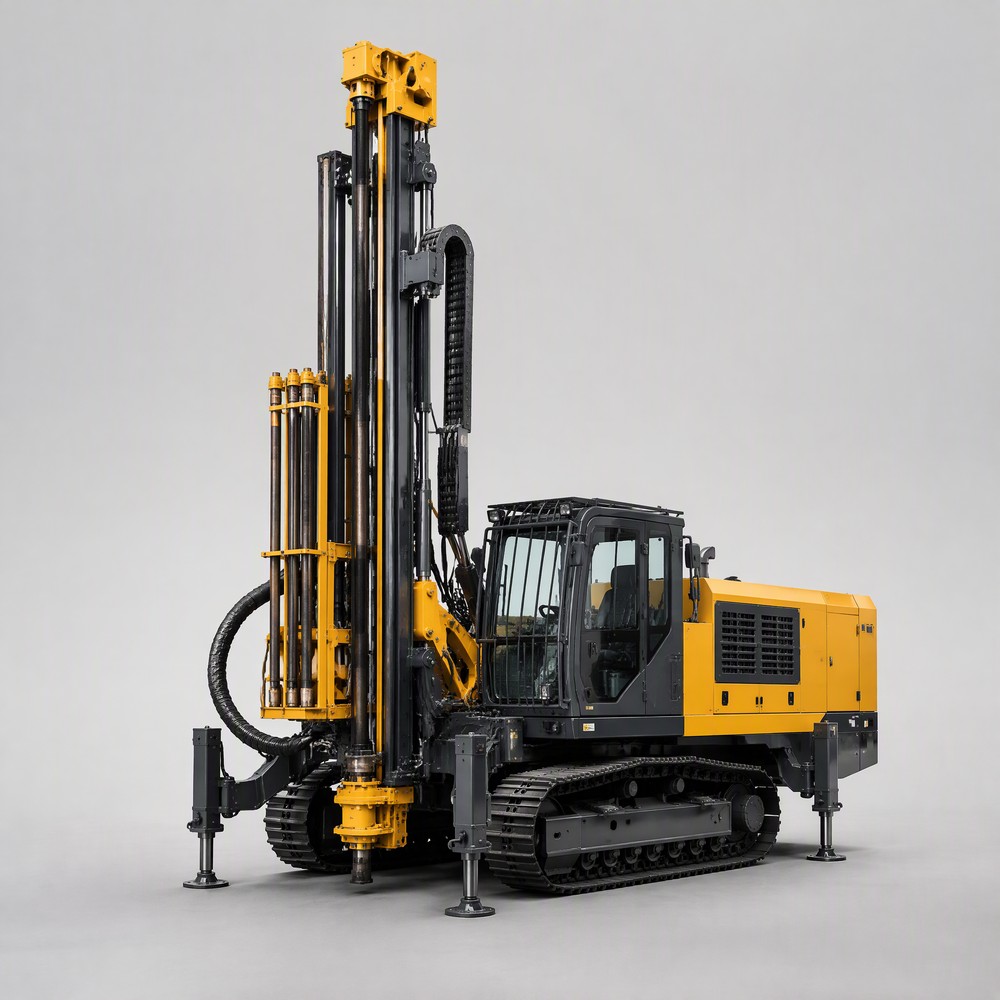

PX-ZYWL-8000D Omnidirectional Engineering Drill Rig

Product Overview

The PX-ZYWL-8000D Omnidirectional Engineering Drill Rig is a high-torque platform engineered for the deepest drainage, water injection and pressure relief boreholes required in underground mining. Output torque of 8000–1600 N·m delivers strong rotary power, while the rotation range of 50–220 r/min provides precise control across a broad spread of rock conditions. Rated drilling capacity reaches 800 m depth or 600 mm diameter, extending the reach of mine drilling programs, and the 90 kW installed power is matched to underground energy and ventilation constraints. The rig can be configured to project requirements and combined with other PX-ZYWL series machines to build a complete fleet.

Product Description

The PX-ZYWL-8000D uses an omnidirectional layout so that boreholes can be positioned at the angles dictated by seam structure and mine planning. A torque range of 8000–1600 N·m allows the rig to maintain rotation through dense ground, while the 50–220 r/min speed band helps operators manage penetration in faulted or variable formations. Drilling capacity of 800 m depth or 600 mm diameter places the machine firmly in the heavy-duty underground class, and a weight of approximately 8800 kg keeps the rig manageable within mine logistics.

The machine is designed for sustained service in gas drainage, water injection and pressure relief programs, with rod handling, clamping and feed systems arranged for efficient tripping at depth. At 90 kW installed power, the rig balances productive capacity with underground electrical supply, and the configuration can be adapted for control systems, auxiliary equipment and site-specific clearances. Because the PX-ZYWL series offers multiple torque and depth classes, the 8000D complements smaller units on site, letting mines allocate each rig to the drilling work where it is most effective.

Key Features

• Supports drilling, water injection and pressure relief applications
• Output torque of 8000–1600 N·m for heavy-duty rotary drilling
• Rotation speed range of 50–220 r/min for variable ground conditions
• Drilling capacity up to 800 m depth or 600 mm diameter
• 90 kW installed power balanced for underground supply constraints
• Machine weight of approx. 8800 kg for practical mine relocation
• Omnidirectional positioning for angled and multi-layer boreholes
• Configurable control and auxiliary systems to match project plans

Technical Specifications

Applications

The PX-ZYWL-8000D is deployed in underground mines where deep gas drainage, water injection and pressure relief boreholes put a premium on torque and reach. Its 800 m drilling capacity reduces the number of intermediate setups required for long programs, and omnidirectional positioning keeps crews productive in confined headings. The machine also suits exploratory drilling where formations vary, giving project teams a single platform capable of handling extended holes with dependable rotary power.
