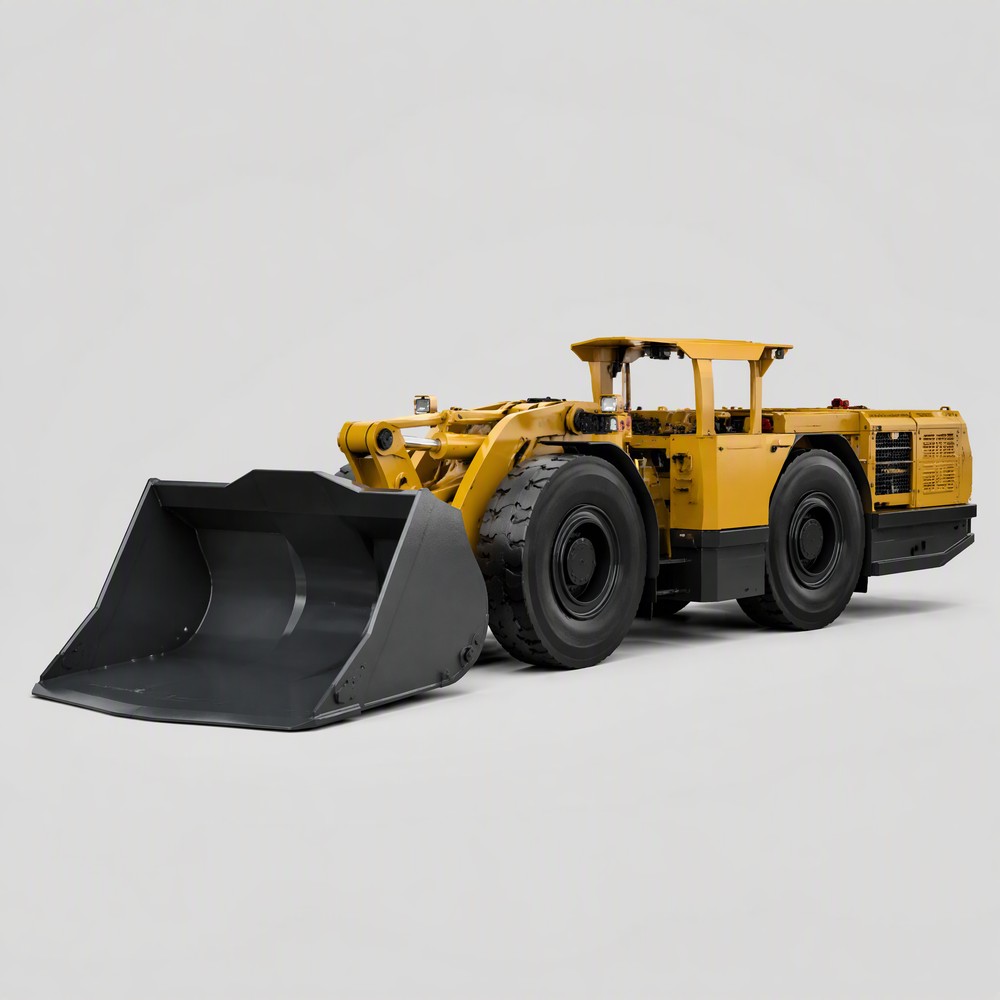

Underground Loader PX-ZL20E-QY928 | 5.2 t

Product Overview

The PX-ZL20E-QY928 is a 5.2-tonne-class underground loader configured for underground loading and shuttle transport. A bucket volume of approximately 0.8 m³ and a payload capacity of approximately 2.0 tonnes provide higher productivity per pass than the smaller loader classes, while the low-profile body maintains good passability in roadways. Wet brakes are available as an option for sites requiring enhanced braking performance and reduced maintenance sensitivity in dusty conditions. Diesel or electric options are available by model, and the machine can be configured according to project requirements. Final specifications are confirmed in the technical agreement and configuration sheet.

Product Description

The loader is positioned in the 5.2-tonne operating class, offering a bucket volume of approximately 0.8 m³ and a payload capacity of approximately 2.0 tonnes. This makes it suited to underground loading and shuttle transport duties where more material per cycle helps maintain production rates. The low-profile body is arranged for underground use, with good passability through typical roadway openings and crosscuts.

Wet brakes are optional, giving operators the choice of a braking system that is less sensitive to dust and water, which can be advantageous in demanding underground conditions. Main functions cover underground loading and shuttle transport, with applications in roadway material transfer that keep headings and support areas supplied. Diesel or electric options are available by model, allowing the power train to be matched to site ventilation and infrastructure. Final specifications are defined in the technical agreement and configuration sheet.

Key Features

• 5.2 t operating class
• Bucket volume approx. 0.8 m³
• Payload capacity approx. 2.0 t
• Low-profile underground design with good passability
• Wet brake optional
• Underground loading and shuttle transport functions
• Roadway material transfer applications
• Diesel or electric options available by model
• Configurable according to project requirements

Technical Specifications

Applications

The PX-ZL20E-QY928 is applied in underground mines and tunnels where underground loading and roadway material transfer are part of the daily production cycle. Its larger bucket and payload support efficient loading and shuttle transport between the working face, transfer points and support areas. The optional wet brakes add flexibility for operations where dust and water are present. Diesel or electric options can be aligned with site conditions, and final configurations are confirmed in the technical agreement and configuration sheet.
