Underground LHD PX-WJ-1.0 | 1.0 m³ Diesel LHD

Product Overview

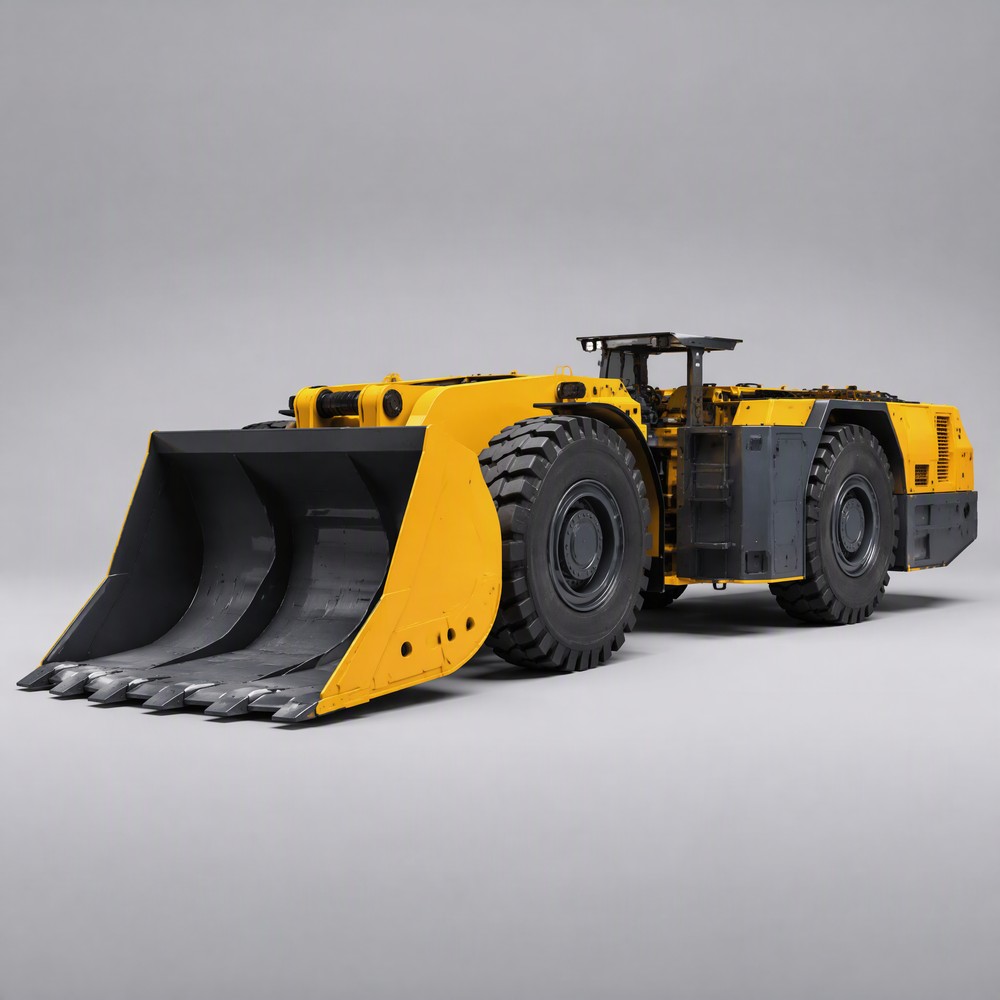

The PX-WJ-1.0 is a diesel-powered underground LHD positioned for small-section loading and haulage operations where a 1.0 m³ bucket and approximately 2 t payload offer the right balance between compactness and output. Its low-profile design allows work in confined headings, while the articulated layout supports quick cycles in crosscuts and draw points. As part of the PX-WJ series, the machine is built for simple operation and maintainability, reducing the support burden on mine operators. Final technical values are confirmed per project and set out in the technical agreement and configuration sheet.

Product Description

The PX-WJ-1.0 is engineered for underground loading and haulage in small-section workings, where productivity depends on fast cycles in limited space. With a 1.0 m³ bucket and a rated payload of approximately 2 t, the machine matches the muck volumes typical of development drives and production headings in compact mines. The low-profile body and articulated frame help the operator place the bucket accurately and maneuver in tight roadways, while the diesel power configuration provides independent operation in areas where electric supply is not practical.

Durability and ease of maintenance are central to the design. Reinforced bucket structure, protected hoses, and accessible service points support long working life under abrasive underground conditions. The operator station is arranged for clear visibility of the bucket and the surrounding heading, which helps control spillage and improves cycle consistency. Because scale, power, and site requirements vary, exact engine ratings, operating weight, and dimensions are confirmed in the technical agreement and configuration sheet for each order.

Key Features

• Low-profile underground design for small-section workings
• 1.0 m³ bucket capacity with approximately 2 t payload (per source data)
• Diesel power configuration for independent operation (per source data)
• Articulated frame design for maneuverability in confined headings
• Suited to loading and LHD operations in underground mines
• Reinforced bucket and protected hoses for abrasive conditions
• Clear operator visibility for controlled loading cycles
• Project-based configuration confirmed in the technical agreement

Technical Specifications

Applications

The PX-WJ-1.0 is suited to underground loading and haulage in small-section mines, including development headings, production drives, and clean-up operations. With its 1.0 m³ bucket and approximately 2 t payload, the machine delivers a practical capacity for moving ore, waste, and development muck without the footprint of larger equipment. Diesel power makes it usable in locations where electrical infrastructure is limited. Mine operators benefit from mechanized loading that improves cycle speed and reduces physical strain, while the compact design eases transport and deployment underground.
