Underground LHD PX-WJ-06 | Compact Light-duty LHD

Product Overview

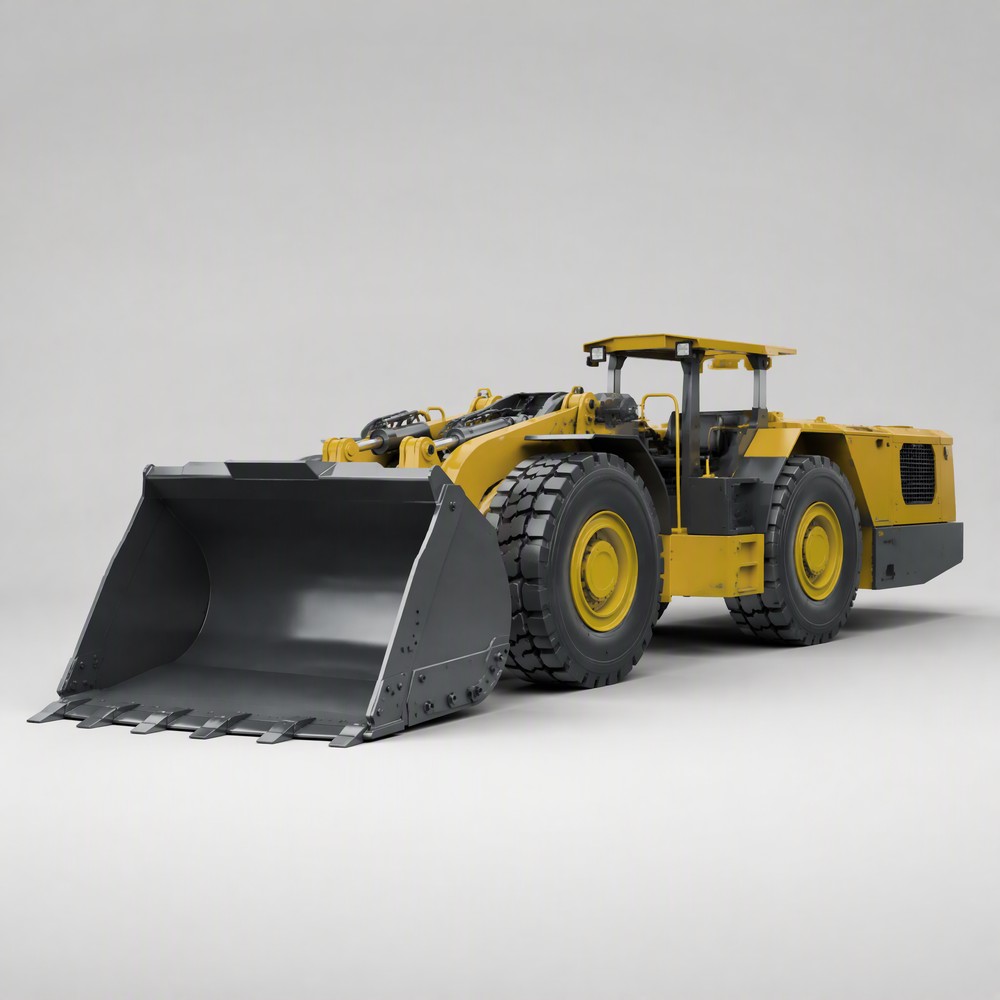

The PX-WJ-06 is a compact underground LHD developed for small-section roadway loading and LHD operations where space and maneuverability are decisive. With a light-duty design and a bucket capacity in the 0.6–0.8 m³ range, the machine is easy to position in narrow headings and can be supplied with diesel or electric power depending on the configuration. Its low-profile structure suits small mine workings and tunnels, while straightforward controls and service access keep daily operation simple. The unit is configured according to project requirements, and detailed specifications are confirmed in the technical agreement and configuration sheet.

Product Description

The PX-WJ-06 is built on the principle that small headings place different demands on a loader than large production drifts. Its compact body and tight turning characteristics let the machine work in roadways where full-size LHDs cannot operate, while the low-profile design protects components and improves visibility in restricted spaces. The bucket range of 0.6–0.8 m³ matches the typical muck volumes of development work, and diesel or electric options can be selected by model to suit ventilation and power availability.

Daily operation emphasizes simplicity: the machine is sized so that a single operator can manage loading cycles without excessive repositioning, and routine checks are designed to be performed quickly at the face or in the service bay. The unit is suited to continuous development and clean-up duties, where its light-duty layout reduces unproductive weight. Because exact ratings depend on the selected configuration, values for engine power, operating weight, and dimensions are supplied in the technical agreement and configuration sheet for each order.

Key Features

• Compact low-profile design for small-section roadways
• Light-duty LHD layout suited to development and clean-up work
• Bucket capacity in the 0.6–0.8 m³ range (per source data)
• Diesel or electric power options available by model
• Tight maneuverability for narrow headings and crosscuts
• Designed for loading and LHD operations underground
• Simplified daily checks and service access
• Configuration defined per project in the technical agreement

Technical Specifications

Applications

Typical duties for the PX-WJ-06 include loading and haulage in small-section underground roadways, development headings, and rehabilitation work in metal and non-coal mines. Its compact profile and light-duty design make it a practical choice for operations where access is tight and full-size loaders cannot be deployed. For contractors, the machine provides a way to mechanize manual loading, improve cycle efficiency, and reduce labor intensity. Optional diesel or electric configurations let sites select a power source that matches ventilation capacity and operating economics.
