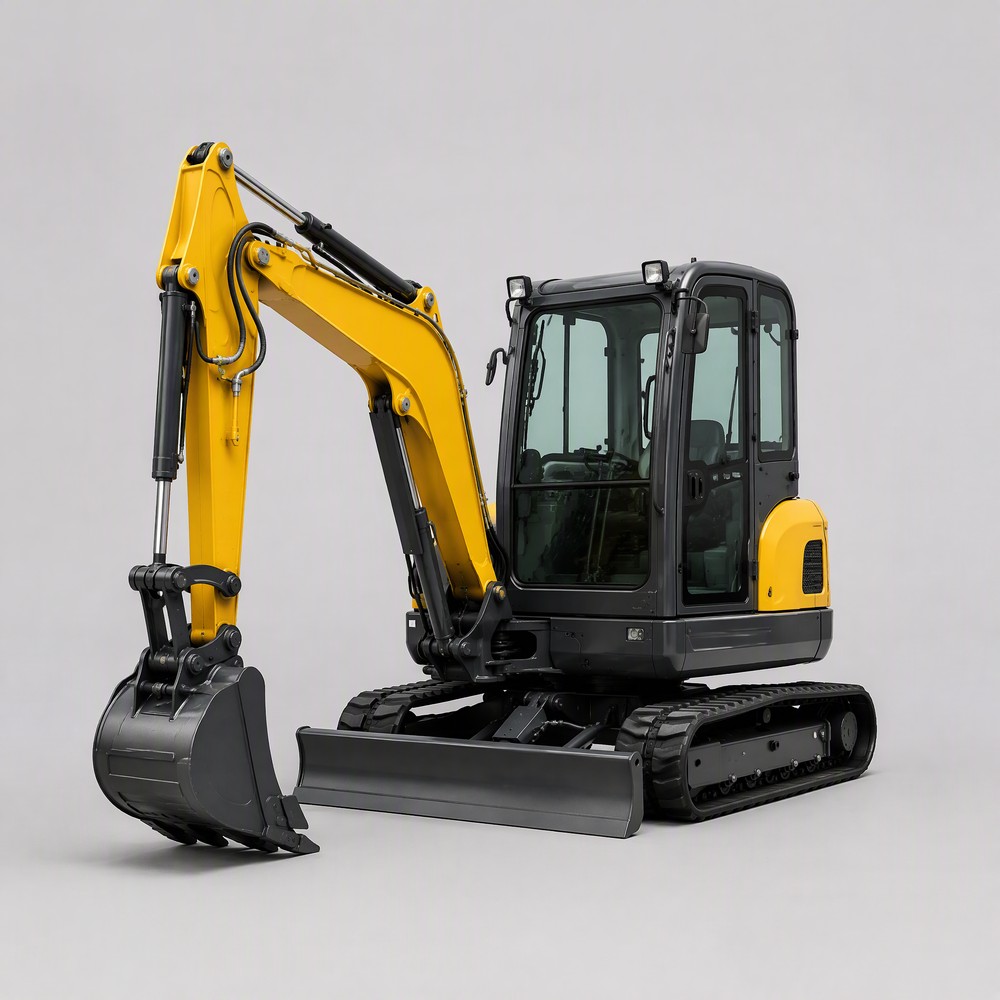

Compact crawler excavator PX-30 with approx. 0.09 m³ bucket and 2810 mm digging depth for municipal, farm and water projects.
The PX-30 is a compact crawler excavator positioned in the 2.6–3.0 t class for contractors who need a versatile machine across municipal works, farmland, water conservancy and small-mine support. The compact structure simplifies access to narrow jobsites while the machine retains a bucket capacity of approximately 0.09 m³, a maximum digging depth of about 2810 mm and a digging height of roughly 4510 mm. Powered by an approximately 14.6 kW engine with optional configurations, it delivers reliable excavation, trenching and handling performance for light construction and maintenance duties.
The PX-30 combines a compact envelope with a generous working range. The machine accesses narrow jobsites and gateways with ease, while its arm delivers a maximum digging depth of approximately 2810 mm and a maximum digging height of about 4510 mm. This combination allows operators to dig deep utility trenches, shape irrigation channels and load material without frequent relocation.
An approximately 14.6 kW power unit, with optional configuration to match regional demands, drives a responsive hydraulic system for smooth digging and fine-grading control. The standard bucket, rated at about 0.09 m³, is complemented by a range of optional tools for breaking, augering or lifting. A durable crawler undercarriage provides stable traction across soft ground, slopes and mixed terrain typical of municipal and agricultural sites.
| Parameter | Value |
|---|---|
| Operating class | 2.6–3.0 t class |
| Bucket capacity | approx. 0.09 m³ |
| Power configuration | approx. 14.6 kW / optional configuration |
| Key dimensions | Subject to configuration |
| Working capability | Max. digging depth approx. 2810 mm; max. digging height approx. 4510 mm |
| Track / undercarriage | Subject to configuration |
| Operating weight | Subject to configuration |
| Attachment options | Subject to configuration |
Typical applications include municipal maintenance and utility trenching, farmland irrigation and field works, water conservancy channel construction, small-mine support operations, and general excavation in residential or commercial projects where compact dimensions and deep reach are both required. The machine is equally well suited to rental fleets and owner-operator duties.
