Compact Crawler Excavator PX-20

Product Overview

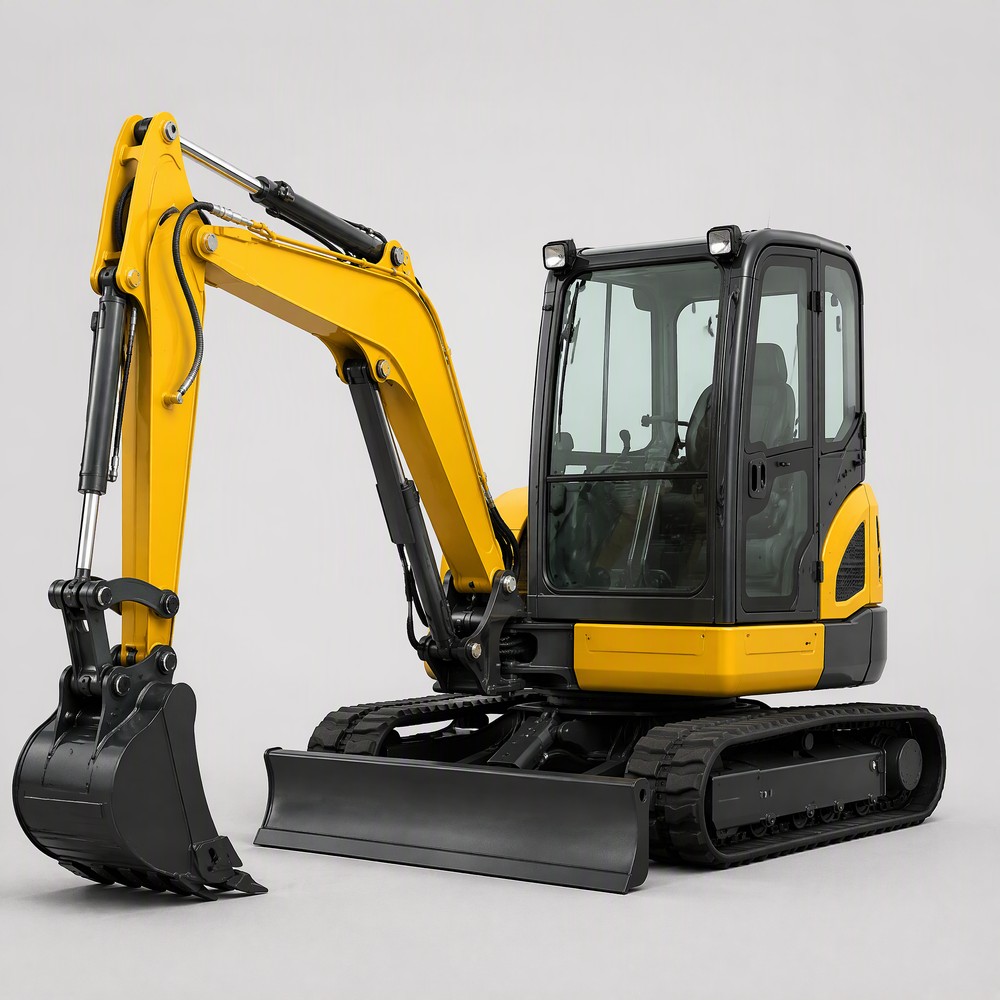

The PX-20 is a 2.0 t class compact crawler excavator positioned at the practical heart of the mini-excavator range, combining useful digging depth with an easily transported package. It is powered by an approximately 14.7 kW diesel unit and offers a digging depth of roughly 2042 mm and a digging height of about 3350 mm. Designed for general-purpose small projects, landscaping, and municipal maintenance, the PX-20 delivers dependable all-round performance in constrained urban and semi-urban sites.

Product Description

The PX-20 has been engineered around a simple principle: maximize work output within a compact footprint. Its hydraulic system is matched to a 14.7 kW class power unit to provide smooth, efficient digging cycles, while the standard bucket capacity range of 0.04 to 0.08 m3 suits typical excavation, backfilling, and leveling tasks. The crawler undercarriage provides stability and traction for working on prepared surfaces, soft ground, and slopes.

Operator-focused controls keep training requirements low, and compact outer dimensions allow the machine to pass through gateways and work alongside buildings and roadways. With a maximum digging depth of approximately 2042 mm and a maximum digging height of approximately 3350 mm, the PX-20 handles trench work, foundation preparation, and loading within a volume appropriate to its class. Configuration packages and optional attachments let owners tailor the machine to their specific workload.

Key Features

• 2.0 t operating class with a compact, transportable footprint
• Max. digging depth approx. 2042 mm
• Max. digging height approx. 3350 mm
• Bucket capacity approx. 0.04–0.08 m3
• Power configuration approx. 14.7 kW
• Flexible configuration for general-purpose construction
• Attachment options available for added versatility
• Compact structure for narrow jobsites

Technical Specifications

Applications

The PX-20 serves general-purpose small projects, landscaping work, and municipal maintenance tasks. It performs trench excavation to roughly 2 m depth, backfilling, and material handling, while its compact size allows operation in residential gardens, narrow streets, and facility interiors. Contractors, landscapers, and utility crews will find the PX-20 a flexible daily workhorse that is easy to move between job sites.
