Intelligent Geological Guarantee System | Mine Geology

Product Overview

The Intelligent Geological Guarantee System is built on the foundation of digital mine geological data and automated geological exploration equipment. Leveraging the Xiaoan Yilian platform and integrating GIS, digital twin, IoT, and big data technologies, it achieves high-precision modeling and transparent visualization of the mine geological environment — providing guidance and service for geological data sharing, dynamic correction, intelligent mining, intelligent tunneling, safe production, and geological disaster early warning.

Product Description

Geological conditions are the most fundamental variable in underground mining — the geometry of coal seams, the location of faults and water-bearing zones, the depth of cover, and the structure of surrounding rock all determine the safety and productivity of extraction operations. The Intelligent Geological Guarantee System transforms geological data from static 2D drawings and borehole logs into a dynamic, transparent, three-dimensional digital model that evolves in real time as mining progresses and new geological data is acquired.

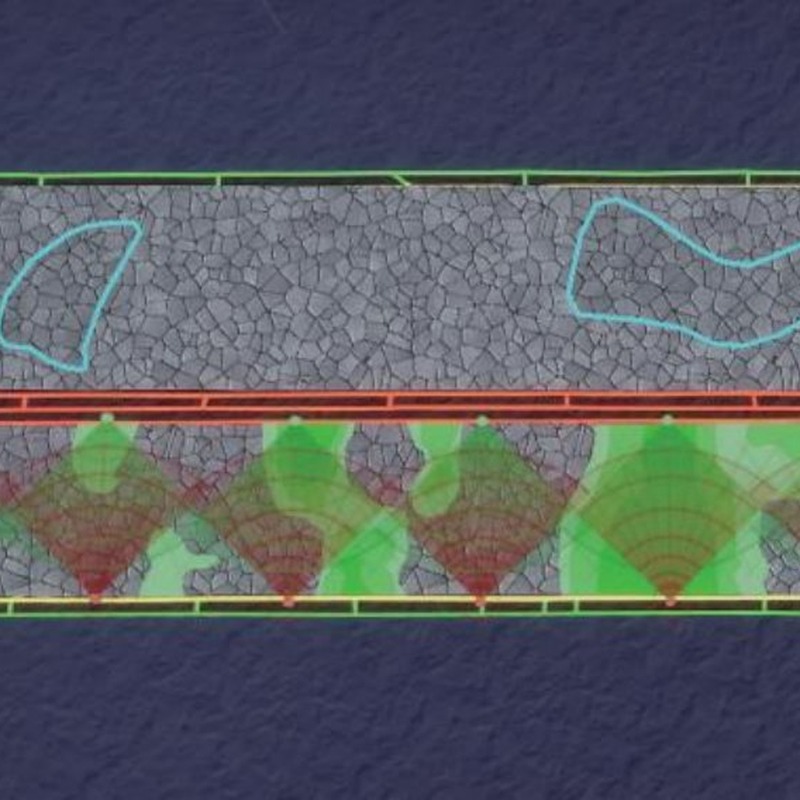

The system's high-precision automatic modeling capability generates 3D models of roadways, working faces, coal-rock strata, boreholes, water accumulation zones, faults, and collapse columns automatically from geological data — eliminating the manual model construction that has traditionally made 3D geological modeling prohibitively time-consuming. The drawing linkage function ensures that the geological model automatically synchronizes when source drawings change, maintaining model-to-reality correspondence without manual intervention. Exploration data — geophysical, borehole, and geological exploration — is integrated and automatically modeled, creating a continuously refined geological picture as new data arrives.

The intelligent mining functions provide transparency of the fully-mechanized working face, interfacing with mining equipment monitoring, video surveillance, and personnel positioning systems. The intelligent tunneling function tracks real-time tunneling machine progress, position, and status. Hazard source early warning dynamically calculates the spatial distance between the current tunneling/mining position and concealed geological hazards — the faults, water zones, and gas accumulations that are the primary causes of mine disasters. Tunneling penetration warning computes the remaining distance to roadway interconnection, and reserve calculation dynamically updates coal seam reserves as extraction progresses.

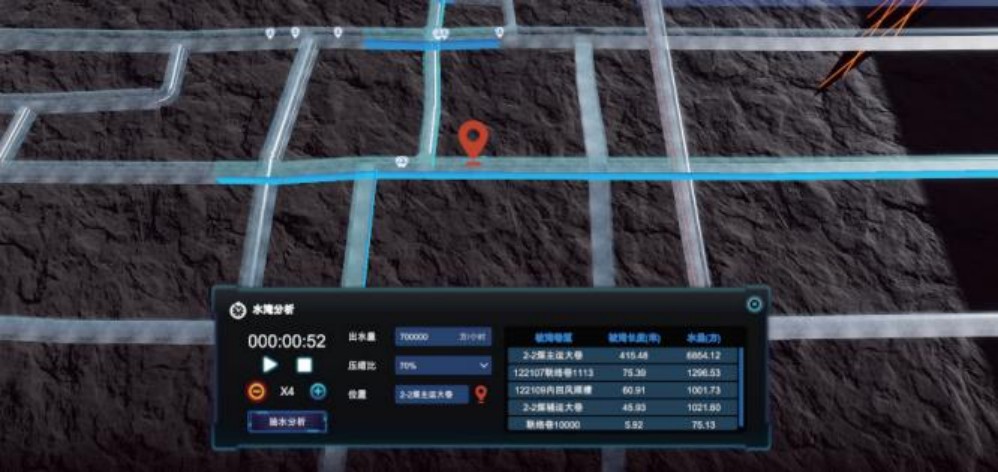

Advanced analytical capabilities include formation cross-section analysis (3D strata slicing with cross-section generation and CAD export), geological extrapolation (computing future coal-cut information including volume, dimensions, and recovery rate), 4D analysis (spatiotemporal data digital twin reflecting geological body and production-operation changes over time), virtual borehole analysis (simulating boreholes and displaying strata information with column generation), coal cutter cutting curve computation, and water-inundation simulation (modeling roadway flooding with submerged length and water volume calculation). The comprehensive disaster prevention function manages emergency resources, plans, command systems, knowledge bases, and materials. The system supports both C/S and B/S architectures and integrates GIS, digital twin, IoT, and big data as its technology foundation.

Key Features

• High-precision automatic 3D modeling of roadways, faces, strata, boreholes, water zones, faults
• Drawing linkage: automatic model sync on source drawing changes
• Exploration data integrated modeling: geophysical, borehole, geological
• Intelligent mining: working face transparency with equipment/video/personnel integration
• Intelligent tunneling: real-time progress, position, status tracking
• Hazard source early warning: dynamic distance to concealed geological hazards
• Tunneling penetration warning and dynamic reserve calculation
• Formation cross-section analysis with CAD export
• Geological extrapolation and 4D spatiotemporal digital twin analysis
• Virtual borehole analysis and water-inundation simulation
• Comprehensive disaster prevention: resources, plans, command, knowledge, materials

Technical Specifications

Applications

Mine geological guarantee, intelligent mining and tunneling, geological disaster early warning, safe production management, emergency drill and disaster prevention.
