Product Overview
The Intelligent Fault Diagnosis Inspector is a smart device integrating vibration, acoustic profile, thermal imaging, rotational frequency, and motor load condition data collection. Breaking through the limitations of traditional inspection and condition checking, it integrates Bluetooth 5.0, WiFi, and CAT1 communication technologies for direct networking and multi-platform fusion, with intelligent diagnostic conclusion display.
Product Description
Effective predictive maintenance of rotating equipment — motors, pumps, fans, gearboxes, compressors — requires the collection and analysis of multiple physical parameters that collectively indicate machine health. Traditional approaches use separate, single-parameter instruments that require different tools, different data collection procedures, and manual correlation of results — a process that is slow, error-prone, and dependent on the expertise of the inspector. The Intelligent Fault Diagnosis Inspector consolidates five parameter types into a single handheld device, enabling comprehensive condition assessment in a single inspection pass.

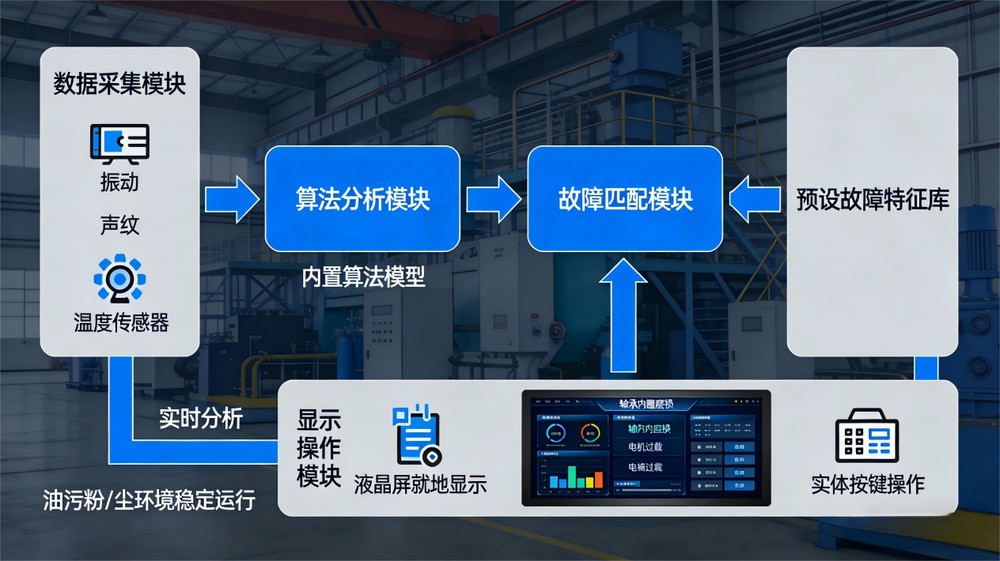

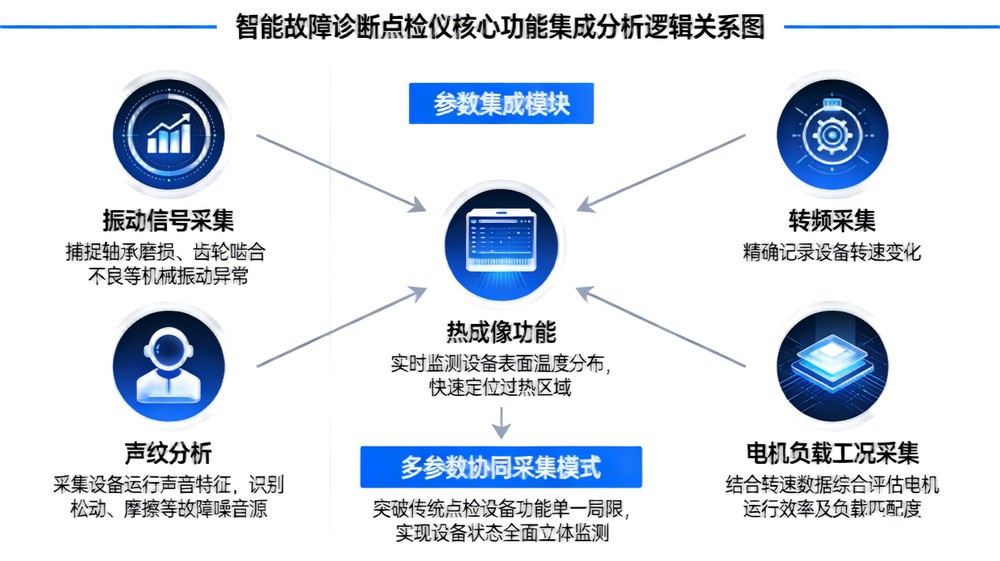

The five integrated data collection dimensions cover the full spectrum of rotating equipment health indicators. Vibration data reveals mechanical faults in bearings, shafts, and gears through frequency-domain analysis. Acoustic profiling captures the sound signature of operating equipment, detecting anomalies such as cavitation, bearing ring distress, and gear mesh defects that may precede vibration-detectable failure. Thermal imaging identifies hot-spots in electrical connections, bearing housings, and lubrication points — detecting friction-related and electrical faults. Rotational frequency measurement enables order analysis and speed-dependent fault characterization. Motor load condition data provides insight into the electrical and mechanical loading of the driven equipment.

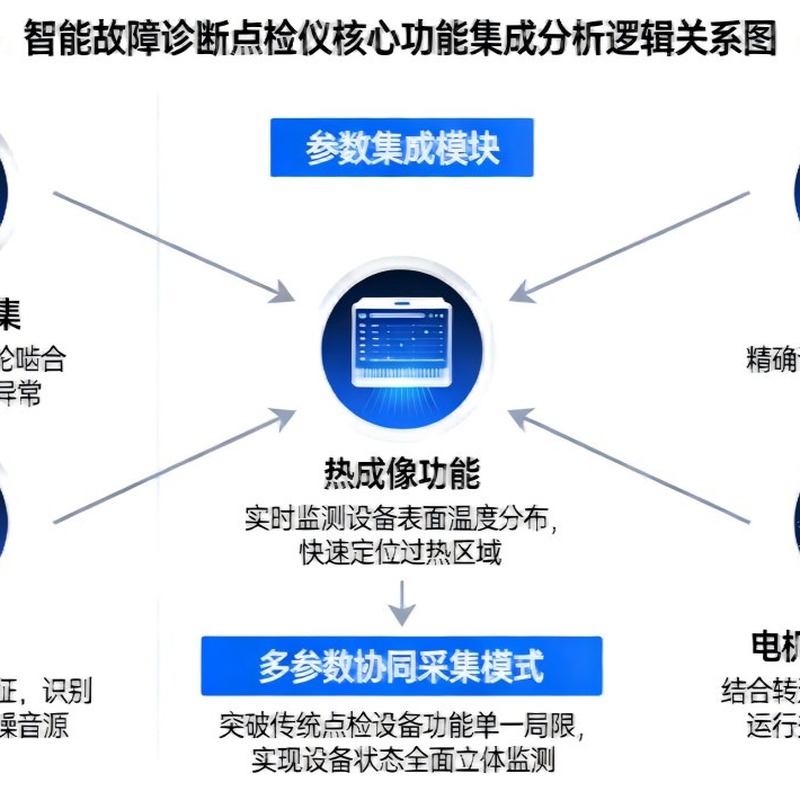

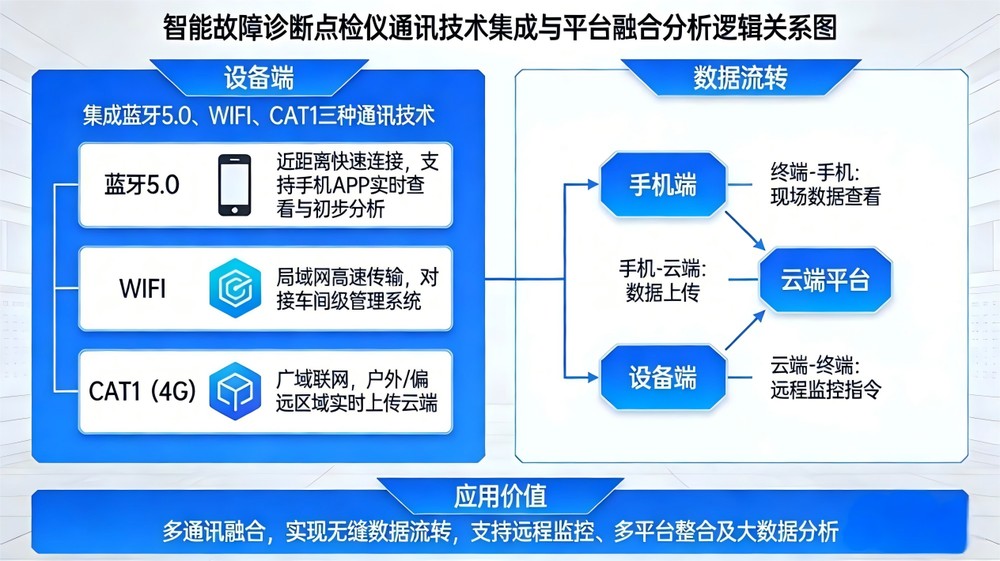

The device's communication architecture integrates three technologies for seamless data flow across the "terminal-phone-cloud" chain. Bluetooth 5.0 provides short-range, low-latency connectivity for direct device-to-phone pairing. WiFi enables higher-bandwidth data transfer and direct integration with facility networks. CAT1 (4G LTE) provides wide-area connectivity for remote or mobile assets where facility networks are unavailable. This multi-technology approach ensures that the device can connect regardless of the communication infrastructure available at the inspection location.
The intelligent diagnostic capability is the device's defining innovation. Built-in algorithm models perform real-time analysis of collected data, displaying diagnostic conclusions directly on the device's LCD screen — eliminating the need to return to a workstation and perform manual analysis. This on-device intelligence enables inspectors to make immediate go/no-go maintenance decisions at the equipment location, dramatically reducing the time from fault detection to maintenance action. The device features a palm-sized ergonomic design for one-handed operation, a liquid crystal display for local data visualization, physical button operation for gloved-hand usability, and wireless charging for convenient power management between inspection rounds.
Key Features
- Multi-dimensional data: vibration, acoustic profile, thermal imaging, rotational frequency, motor load
- Multi-communication: Bluetooth 5.0, WiFi, CAT1 (4G)
- "Terminal-phone-cloud" seamless data flow
- Intelligent diagnosis: built-in algorithms with on-device result display
- LCD screen local display with physical button operation
- Palm-sized ergonomic design, lightweight and portable
- Wireless charging capability
Technical Specifications
| Parameter | Value |
|---|
| Collection Parameters | Vibration, acoustic profile, thermal imaging, rotational frequency, motor load |
| Communication Technologies | Bluetooth 5.0, WiFi, CAT1 (4G) |
| Display | LCD local display |
| Operation Method | Physical buttons |
| Charging Method | Wireless charging |
| Diagnostic Method | On-device built-in algorithm model, automatic analysis |
Applications
Industrial key equipment inspection and condition checking, rotating equipment fault diagnosis, and equipment predictive maintenance.
![]()
![]()
![]()
